5 " LCD Screen VGA 640x480, 5.7 " LCD Screen VGA Panel

  X- Bri LED Backlight, Ultra Energy Saving.

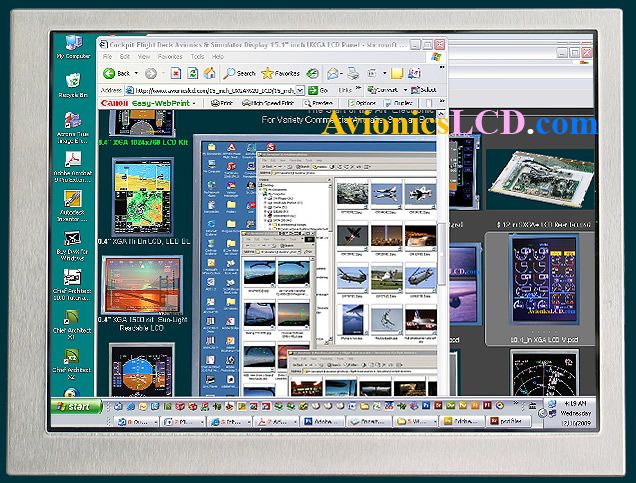

The  5" LCD screen image above is on virtual XGA Mode. It 's scale-able up to 1280x1028 SXGA resolution.

Sample Price $ 370 USD

Minimum Order  2  pcs

See our   VIP Customers   who use  this 5" LCD Screen

Specsifications

Model name	VT050LE-VX	5" VGA LCD applied on handheld oscilloscopes & multi test meters
Resolution	640 X 480 VGA Up Scalable to 1280 x 1024 SXGA
Screen size	5" inch
Active area	101.7 W x 74.8 H mm
Input connectors	VGA port  + Composite  NTSC Video
Overall dimensions (W x H x D )	120.7 W x 92.8 V x 25 D mm
Brightness	450  CD / m2
Back light  type	24  LED ,   30,000 hours life
Contrast Ratio	400 : 1
Vewing Angle	120 H,   95 V   degree
Response  time ( ms )	Typ 25  ms
Power connection	12V DC  Jack center pin is  " + "
Power consumption	5W  , 500 mA current drag

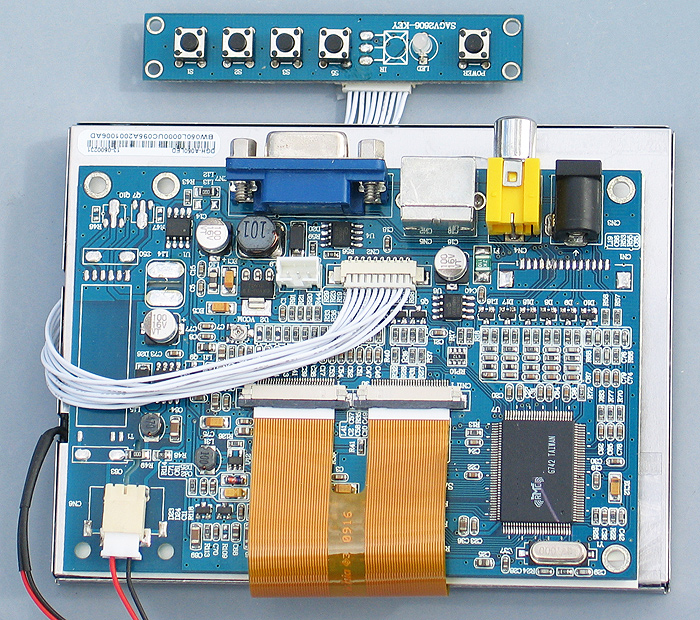

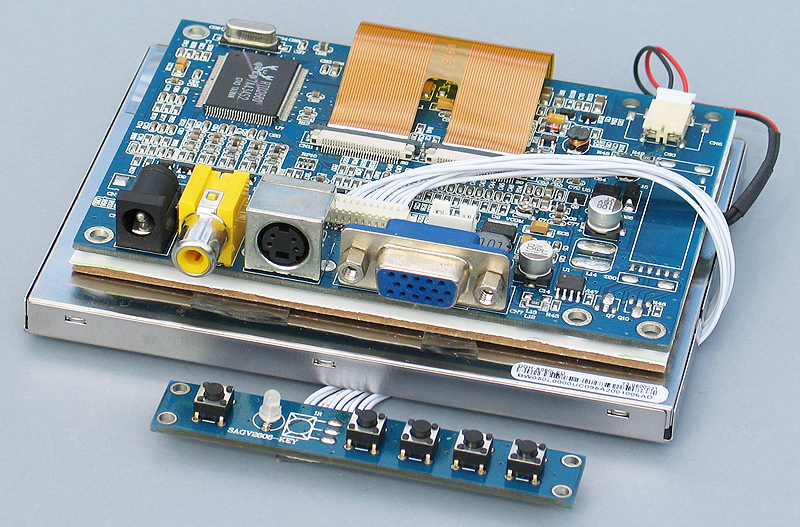

Weight	173 g + Decoder PCB
Operating temperature	-30~ + 80 C
Shock Test	100 G, 6 ms on X, Y, Z  each directions
Vibration Test	10 ~ 55 Hz , Amplitude 1.0 mm  on X, Y, Z  each directions

The 5" LCD Screen Mechanical Drawings & Further Specs

Application Demo

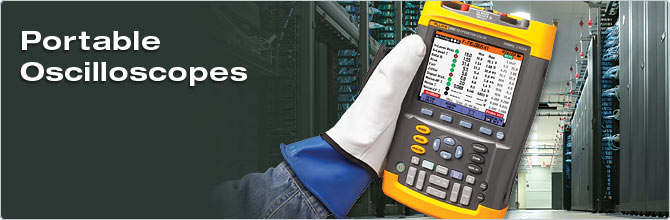

5" VGA LCD  as  handheld oscilloscope & multi test meter display

5.7 " LCD Screen, Sunlight Readable  LED Backlight, Ultra Efficient

The 5.7" LCD Screen, Playable 720p, 480p HDTV Video via HDMI port

The 5.7" LCD Screen Specifications

Model name	VT057LE-SL	5" VGA LCD applied on handheld oscilloscopes & multi test meters
Resolution	640 X 480 VGA Up Scalable to 1280 x 1024 SXGA
Screen size	5.7" inch
Active area	115.2 W x 86.4 H mm
Input connectors	DVI+VGA + HDMI port +S-Video  NTSC Video
Overall dimensions (W x H x D )	144 W x 104.6 V mm x 12.8 mm panel size
Brightness	700 CD / m2
Back light  type	X-Bright  LED, 50,000 hours life, PWM control
Contrast Ratio	800 : 1
Vewing Angle	160 H,   140 V   degree
Response  time ( ms )	Typ 25  ms
Power connection	12V DC  Jack center pin is  " + "
Power consumption	3.5W  on panel
Weight	175g Max
Operating temperature	-30~ + 85 C
Shock Test	100 G, 6 ms on X, Y, Z  each directions
Vibration Test	10 ~ 55 Hz , Amplitude 1.0 mm  on X, Y, Z  each directions
Panel Interface	CMOS  6 bit parallel  RGB  33 pin connector
Compliance	RoHS

5.7" LCD Screen VGA Sunlight LCD Mechanical Drawings & Further Specs

Sample Price $ 378  USD

Minimum Order 2  pcs

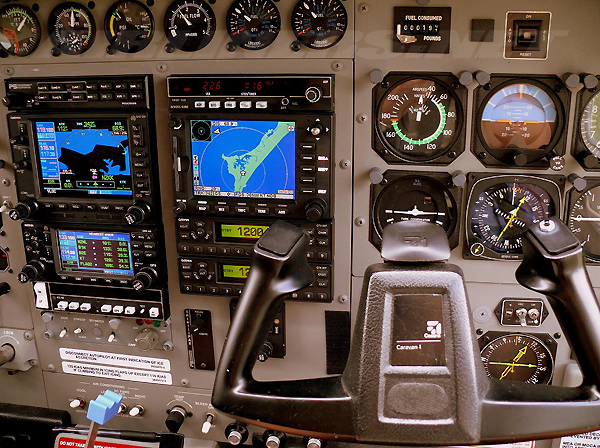

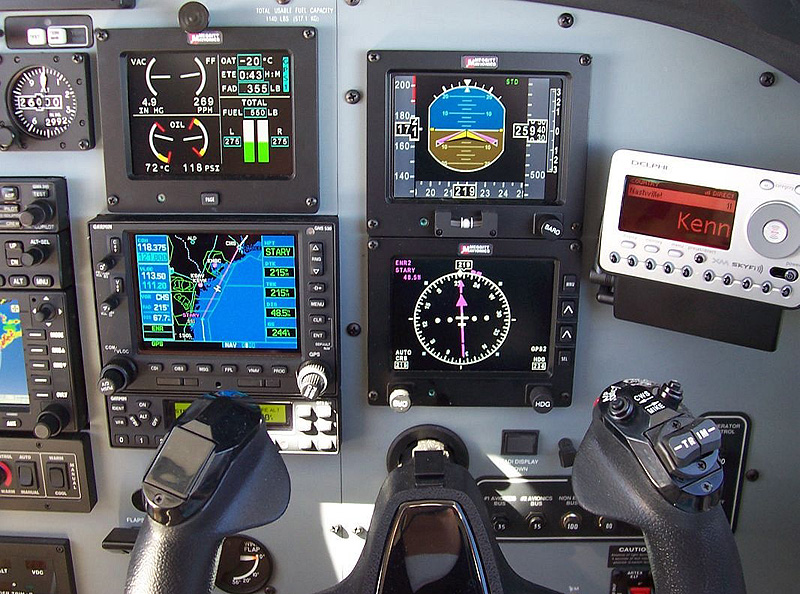

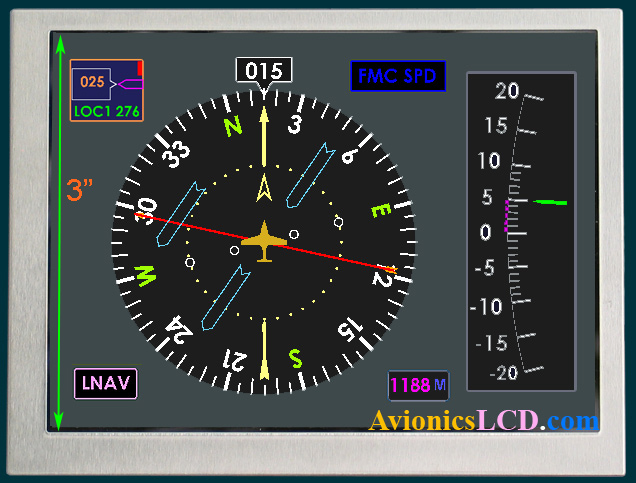

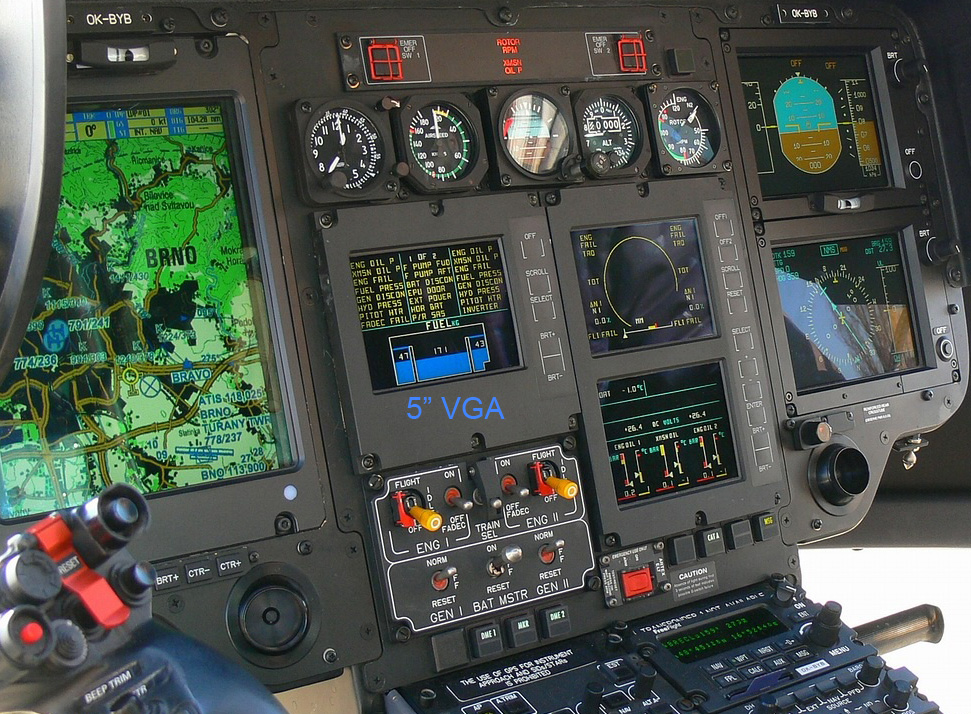

5" LCD Screen & 5.7" LCD Screen Applications on Avionics Displays
