15.4" LCD WUXGA 1920x1200 16:10 ratio
The Highest Resolution LCD for Cockpit Flight Deck Avionics Display & Simulator

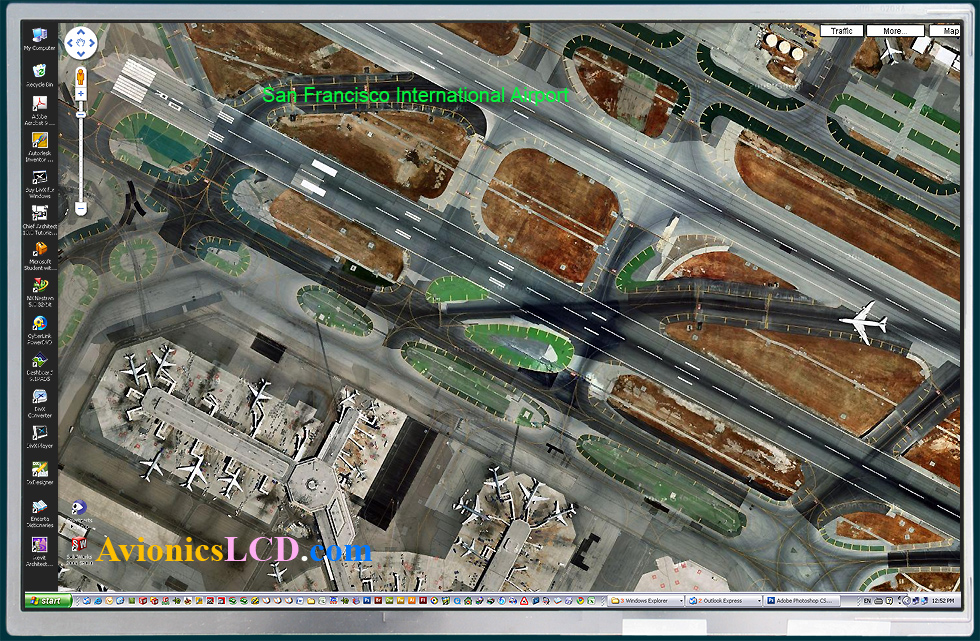

A 1920x1200 real screen image on the compact 15.4" LCD.
The Highest Resolution LCD In The Industry At Small Size Display Class
Dual
Lamps Hi-Bri Version Super Fine Pitch 15.4" LCD WUXGA
Sample price $ 738
USD
Specifications
|
Model name |
VT154WUX2Hi-Bri |
|
Resolution |
1920 X 1200 WUXGA |
|
Screen size |
15.4" inch 16 : 10 |
|
Active area |
331.2 mm W x
207 mm H |
|
Input connectors |
VGA + DVI + HDMI port |
|
Overall dimensions (W x H x D mm ) |
334 W x 222 H x ( 7 + 20 ) mm D |
|
Brightness |
380 CD / m2 |
|
Back light type |
2 CCFL |
|
Contrast Ratio |
500 : 1 |
|
Viewing Angle |
120 H, 90 Ver degree |
|
Panel Connector |
30 pin LVDS 6 bit , 262,144 colors |
|
Response time ( ms ) |
Typical 16 ms, Max 30 ms |
|
Power connection |
12V DC
Jack Center pin is "
+ " |
|
Power consumption |
6 W on panel,
1A
current drag |
|
Weight |
560 g |
|
Operating temperature |
-0 ~ + 50 o C |
|
Storage temperature |
-20 ~ + 60 o C |
|
Shock Test |
100 G, 6 ms on X, Y, Z each directions |
|
Vibration Test |
LCD10 ~ 55 Hz , Amplitude 1.0 mm on X, Y, Z each directions |
15.4" LCD WUXGA Panel Mechanical Drawing
3.5" LCD Screen, 4.8" LCD 1024x600, 5" LCD Screen, 5.6" LCD,
5.7" LCD VGA, 6.3" LCD Screen XGA, 6.4" LCD, 6.5" LCD
Screen VGA , 7"
LCD Screen 1024x600, 8.4" LCD Screen XGA,
10.4" LCD Screen XGA , 12" LCD Screen, 12.1" LCD 1400x1050, 15"
LCD Screen Panel UXGA 1600x1200, 15.4" LCD Panel 1920x1200, 15.6" LCD Screen Panel
1920x1080, 27" LCD Panel 2560x1440, 30" LCD Panel 2560x1600 WQXGA.
15.4" LCD WUXGA on AirBus A380-841
Airbus A380 -841 Cockpit
| |
|
